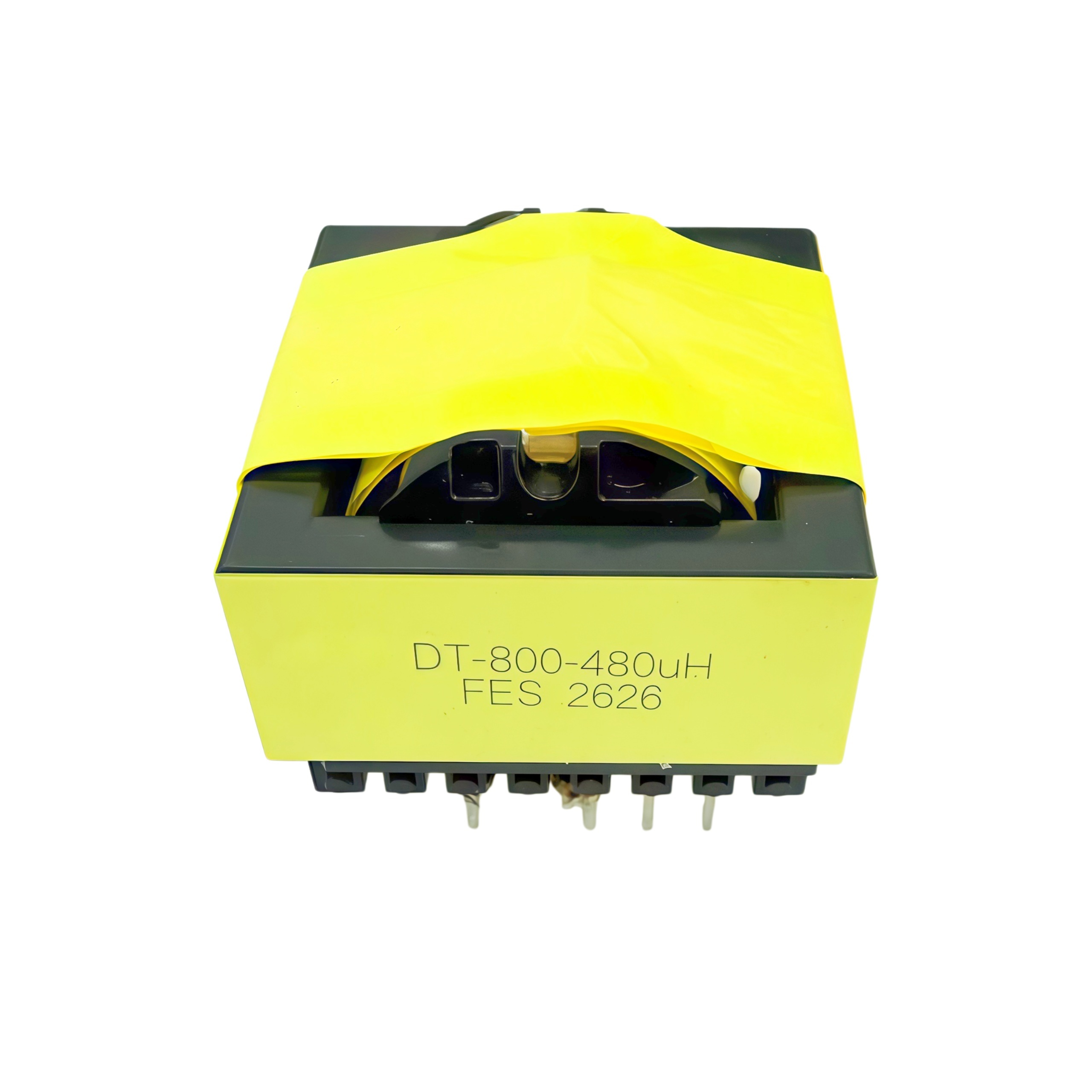

Horizontal Mount High Efficiency EC28 High Frequency Transformer with Thermal Stability for PCB Power Solutions

PCB Mount Ferrite Core Transformer designed for high-efficiency power solutions with superior electrical performance and thermal stability.

ZXY New Arrival: EC28 Horizontal High-Frequency Transformer - Optimized for High-Efficiency PCB Power Solutions

Elevate your power supply design with ZXY's latest EC28 high-frequency transformer, engineered for seamless PCB integration and superior electrical performance. Featuring a high-permeability ferrite core and a robust horizontal mount design, this transformer delivers exceptional energy conversion efficiency and thermal stability under rigorous high-frequency conditions.

Perfectly suited for industrial power modules, switching power supplies, and high-precision electronic equipment, our EC28 series provides the reliable isolation and stable power output required for next-generation electronic applications.

A client needed a compact, reliable power solution for a 100W industrial LED street lighting driver that operates in harsh, high-temperature environments.

By integrating the ZXY EC28 Horizontal Transformer, the design team achieved:

• Space Optimization: The horizontal PCB mount design significantly reduced the vertical profile, allowing for a slimmer and more compact driver housing.
• Thermal Efficiency: The high-grade ferrite core minimized core losses, ensuring the transformer remained cool even during continuous, long-hour operation.
• Reliable Performance: The precise winding and robust construction provided the stable electrical isolation required to protect the LED array from voltage spikes, ensuring a long-lasting, flicker-free light output.
